Product Information

DIE AND MOLDSPOTTING PRESS
Useful for more and more sophisticated mold finishing andshort delivery times.

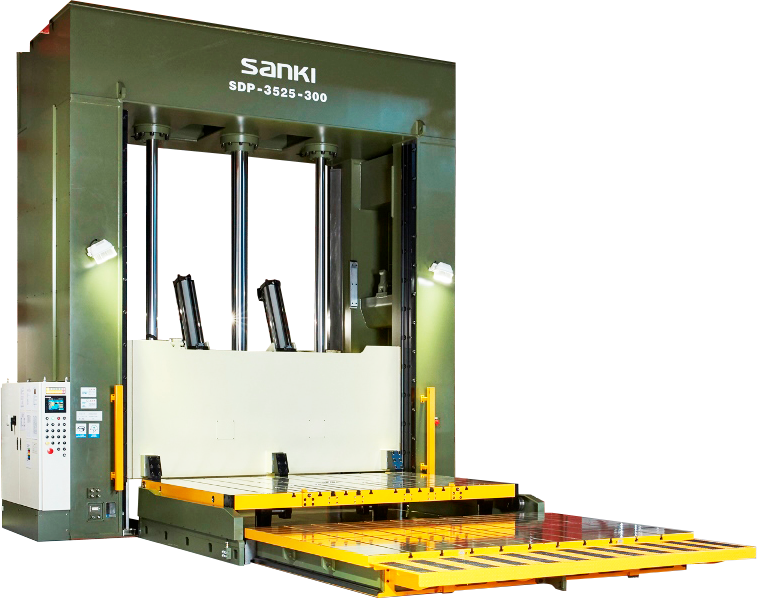

SDP-3525-300GIBasic Information
SDP
Primary Purpose Die matching of plastic/die-casting mold
Pressurization Function(kN) 3,000
Table Size(mm) 3,500 × 2,500
Day Lights(mm) 2,800
Stroke(mm) 2,640
Maximum metal die weight(TON) 40
Upper mold weight(TON) 20
Special accessories (options)
Touch panel
The touch panel on the control panel enables various press controls through touch operation including pressure display and slide position control.
Eco machine authorization model
A model which drastically reduces electricity consumption and exhaust heat compared to traditional methods through inverter control of the main electric motor.
Core hydraulic pressure source
Confirms the operation of each hydraulic cylinder equipped onto metal die.
Device preventing metal die falling
Device which, by attaching a mobile block, prevents metal die falling down when inverted.
DIE AND MOLD SPOTTING PRESS
